Waterproofing My Bathroom: Is a Flood Test Really Necessary?
Waterproofing My Bathroom: Is a Flood Test Necessary for Leak Prevention and Quality Assurance?
Waterproofing my bathroom demands rigorous quality checks to prevent hidden leaks and mold outbreaks, and a flood test is the most reliable method to verify membrane integrity before tile installation. In this guide, you will discover what a flood test is, why it matters for leak prevention and structural health, exactly how and when to perform one, which codes and standards govern the procedure, how to troubleshoot failures, and what complementary techniques can enhance your waterproofing strategy. By following these expert insights, you’ll ensure durable, code-compliant bathroom waterproofing with professional confidence and maximum home value.
What Is a Flood Test and Why Is It Crucial for Bathroom Waterproofing?
A flood test is a controlled water fill of a shower pan or wet area to detect leaks in the waterproofing membrane, ensuring proper installation and avoiding hidden water damage. Performing this procedure before tiling prevents structural deterioration, mold growth, and costly repairs that can arise from undetected membrane gaps. For example, a properly executed 24-hour flood test on a newly waterproofed shower pan can reveal pinhole leaks at seams or drain connections that visual inspection alone might miss.
Waterproofing my bathroom with a validated flood test delivers three primary benefits:
- Leak Detection: Identifies membrane failures at seams, corners, or drain interfaces.
- Quality Assurance: Verifies that liquid or sheet membranes have cured and bonded correctly.
- Risk Mitigation: Prevents mold proliferation, subfloor rot, and tile adhesive failures.
By validating waterproofing performance in advance, you protect both your home’s health and long-term investment.
What Does Flood Testing Involve in Shower and Bathroom Waterproofing?
Flood testing involves sealing the drain outlet, filling the shower pan or floor area with a specified depth of water, marking the water level, and monitoring for drops over a set period. The process typically includes:
- Installing an approved drain plug or temporary dam.
- Filling the area to at least 2 inches above the threshold or flood rim.
- Marking the initial water line on the wall or dam material.
- Observing water level stability for 24–72 hours.
A stable water line confirms membrane integrity, while any drop signals a leak requiring repair before tile work begins.
How Does Flood Testing Prevent Mold, Structural Damage, and Costly Repairs?
By detecting leaks early, flood testing prevents moisture intrusion that fuels mold colonization, undermines subfloor joists, and degrades tile adhesives. Table 1 contrasts potential issues against flood test prevention:
Ensuring waterproofing integrity with a flood test eliminates hidden risks that lead to expensive remediation and health concerns.
When Should a Flood Test Be Performed During Bathroom Remodeling?
A flood test must occur immediately after membrane application and curing—but before mortar bed or tile installation. Typical timing includes:
- After full cure of liquid-applied or sheet membranes (per manufacturer’s specification).
- Before installing mortar bedding, backer board, or tile.
- Prior to final rough-in of fixtures to maintain easy access for repairs.
Testing at this stage avoids rework on installed tile and ensures that waterproofing is verified under maximum vulnerability.
How Do You Perform a Flood Test on a Shower Pan or Bathroom Floor?
Flood testing a shower pan delivers critical assurance, requiring precise preparation, tools, and procedural steps to identify any waterproofing defects. By following a systematic approach, even complex configurations like curbless showers can be reliably evaluated. With over 8 years of dedicated experience in bathroom remodeling, I’ve honed these techniques to ensure effective and reliable waterproofing for every project.
What Preparation Is Needed Before Starting a Flood Test?
Proper preparation ensures structural safety and membrane performance:
- Curing Time: Allow complete cure of applied membrane (usually 24–48 hours for liquid systems, per ANSI A118.10).
- Structural Capacity: Verify substrate can bear water weight (1 gallon ≈ 8.34 lb).
- Site Readiness: Remove debris and ensure flood rim or curb is intact.
With these conditions met, the membrane is ready for an accurate test that won’t damage unfinished surfaces.
What Tools and Materials Are Required for Effective Flood Testing?
- A certified drain plug or water-tight bung.
- Water source with hose or bucket.
- Measuring tape to verify water depth.
- Marker or tape for level documentation.
- Protective barrier (plastic sheet) to prevent overflow.
These items guarantee precise water control and clear evidence of any leaks during the test.
What Are the Step-by-Step Procedures for Flood Testing a Shower Pan?
- Seal the drain outlet with a watertight plug rated for flood testing.
- Ensure all auxiliary openings (fixtures, joints) are temporarily sealed.
- Fill the pan to 2 inches above the highest threshold or curb.
- Mark the initial water level on walls or the curb barrier.
- Monitor for 24–48 hours, checking level stability every 6–8 hours.
- Document any water loss and locate possible leak points.
- Drain water, repair detected leaks, and retest until no loss occurs.
Completing these steps confirms a leak-free waterproofing membrane ready for tile application.
How Do Flood Testing Procedures Differ for Curbless Showers and Wet Rooms?
Curbless showers and wet rooms require temporary dams or liner flanges to contain test water. Key adaptations include:
- Building a removable dam of silicone and foam backer rod at the threshold.
- Installing a continuous flange extension around perimeters.
- Ensuring seamless membrane coverage across floor and up walls.
With these adjustments, even barrier-free designs can undergo full flood testing without compromising intended aesthetics.
What Are the Building Code and Industry Standards Governing Flood Testing?
Regulatory compliance for flood testing integrates national plumbing codes and industry standards to ensure uniform safety and performance.
Which Local and National Building Codes Require Flood Testing?
Many jurisdictions enforce flood testing under local adaptations of national codes:
- International Plumbing Code (IPC) mandates flood testing for shower receptors.
- Uniform Plumbing Code (UPC) specifies a minimum 2-inch water depth for 24-hour tests.
- Some municipalities require evidence of test results before tile inspection.
Building Code Requirements for Shower Waterproofing
Many local jurisdictions adopt and enforce building codes that mandate flood testing for shower receptors to ensure proper waterproofing. These codes, often based on national standards like the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), specify the procedures and requirements for these tests, including water depth and duration.
This citation supports the article’s claims about the necessity of flood testing as mandated by building codes.
Understanding local code amendments is essential to avoid inspection delays and ensure legal compliance.
What Does ANSI A118.10 Specify About Waterproofing Membranes?
ANSI A118.10 defines performance criteria for load-bearing, bonded waterproof membranes used under ceramics and dimension stone. Table 2 summarizes key requirements:
ANSI A118.10 Standard for Waterproofing Membranes
ANSI A118.10 provides performance criteria for load-bearing, bonded waterproof membranes used under ceramic and dimension stone. This standard specifies requirements for bond strength, water absorption, and load capacity, ensuring that waterproofing materials maintain their integrity under various conditions.
This citation supports the article’s discussion of the ANSI A118.10 standard and its importance in ensuring the quality of waterproofing membranes.
Compliance with A118.10 ensures that waterproofing materials maintain integrity under daily use and freeze-thaw cycles.
How Does ASTM D5957 Guide Flood Testing Procedures?
ASTM D5957 standardizes flood testing horizontal waterproofing surfaces, specifying water depth, test duration, and observation intervals. By following D5957 guidelines, installers align with recognized best practices for reliable leak detection.
What Are the Tile Council of North America (TCNA) Recommendations for Flood Testing?
The TCNA Handbook recommends flood testing all new installations with at least 2 inches of water for a minimum of 24 hours, with monitoring points at seams and drain flanges. These guidelines support consistent tile adhesion and long-term performance in wet areas.
What Are Common Flood Test Failures and How Can You Troubleshoot Them?
How Can You Differentiate Between Evaporation and Actual Leaks During Testing?
Minor water loss under 1/8 inch over 24 hours may result from evaporation, whereas greater drops indicate membrane breaches. Always measure ambient conditions and adjust expectations based on temperature and humidity to distinguish leakage from natural evaporation.
Where Are the Most Common Leak Sources in Shower Flood Tests?
Leak origins typically cluster at vulnerable components such as:
- Drain assemblies and flange connections.
- Inside corners where sheet membranes overlap.
- Screw penetrations or fastener holes.
Identifying these hotspots accelerates repair and ensures a comprehensive membrane restoration.
What Are the Recommended Steps for Repairing Waterproofing Failures?
- Remove tile or mortar around the leak location.
- Dry the substrate and cut out damaged membrane.
- Apply patch of the same membrane type per manufacturer guidelines.
- Reinforce corners with mesh tape or custom flange kits.
- Allow full cure, then re-flood test to confirm repair success.
Addressing failures promptly prevents repeated test cycles and upholds quality standards.
Why Is Retesting Important After Repairs?
Retesting validates that patch repairs have fully sealed breach points under live water pressure, confirming membrane continuity and restoring confidence for tile or stone installation.
What Are the Long-Term Benefits of Flood Testing and Professional Waterproofing?
How Does Flood Testing Protect Your Home’s Structural Integrity and Health?
By confirming waterproofing performance, flood testing prevents chronic moisture intrusion that leads to rot, mold, and indoor air quality issues. This proactive step supports resilient subfloors and healthier living spaces over decades.
When Should You Hire Professional Waterproofing Specialists vs. DIY Flood Testing?
DIY flood tests are feasible for competent remodelers, but complex layouts, steam showers, or multi-surface transitions often warrant professional expertise. Specialists offer comprehensive warranties, precise code compliance, and advanced materials selection. My extensive experience ensures that even the most challenging projects are handled with precision and effectiveness.
How Does Proper Waterproofing Increase Property Value and Energy Efficiency?
Well-executed waterproofing can boost home resale value by up to 25 percent and reduce energy costs by maintaining thermal integrity in tiled showers. Buyers recognize leak-free wet areas as a premium feature that enhances overall property appeal.
What Are Alternatives or Complementary Methods to Flood Testing for Leak Detection?
How Do Visual Inspections and Moisture Meters Complement Flood Testing?
Visual inspection of seams and adhesive layers reveals surface defects, while moisture meters measure moisture content in substrates behind tiles. These non-invasive tools help prioritize areas for flood testing and expedite repair planning.
When Are Alternative Testing Methods Recommended Over Flood Testing?
Alternative methods may suffice for minor repairs or spot checks, but full flood testing remains essential for initial waterproofing verification. Use infrared thermography or colorimetric dyes only as adjuncts when access or water use restrictions apply.
Working with Leading Waterproofing Systems and Manufacturers
When undertaking bathroom waterproofing, partnering with reputable manufacturers and understanding their specific system requirements is paramount. Leading brands like Schluter, Kerdi, and GoBoard offer advanced, integrated waterproofing solutions that simplify installation and enhance reliability. Familiarizing yourself with their product lines and recommended installation practices, including flood testing protocols, ensures optimal performance and longevity.
Understanding Schluter Systems
Schluter offers a comprehensive range of waterproofing membranes, uncoupling membranes, and profiles designed to work seamlessly together. Their systems, such as KERDI-BOARD and DITRA-HEAT-DUO, are engineered for ease of installation and superior waterproofing capabilities. Adhering to Schluter’s specific guidelines for membrane application, seam sealing, and flood testing is crucial for validating the integrity of their integrated systems.

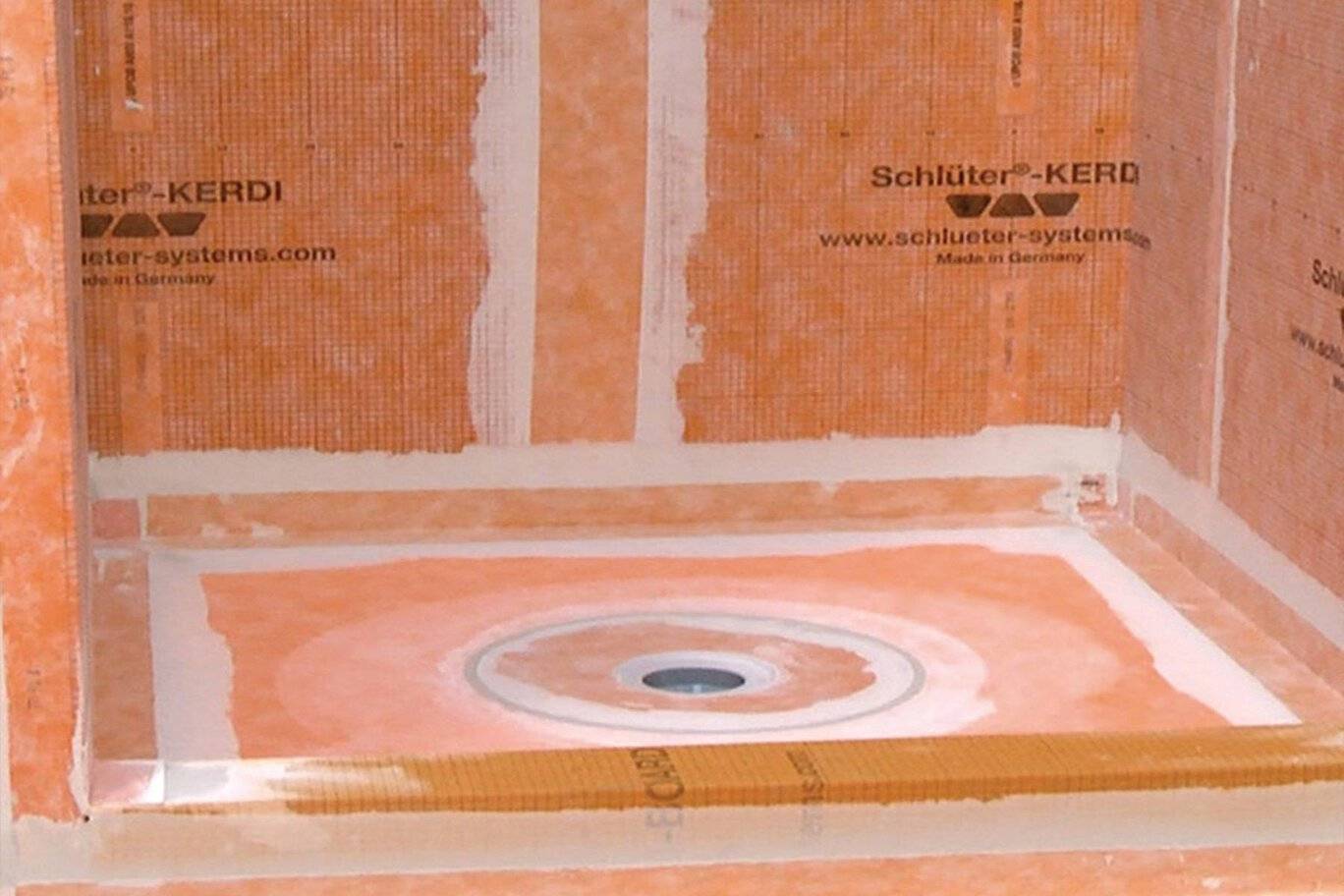

Leveraging Kerdi Waterproofing
Schluter’s Kerdi membrane is a popular choice for its pliable, seamless waterproofing properties. It’s designed to be integrated directly into the tile assembly, providing a continuous waterproof barrier. Proper installation involves meticulous attention to detail at seams, corners, and drain connections, all of which are critical points to verify during a flood test. Following Kerdi’s specific instructions for curing and testing ensures that the membrane performs as intended.
Utilizing GoBoard Waterproofing
GoBoard, another innovative product, offers a lightweight, rigid, and waterproof tile backer board that also serves as a waterproofing substrate. Its integrated waterproofing eliminates the need for separate liquid or sheet membranes in many applications, streamlining the installation process. However, even with integrated systems like GoBoard, flood testing remains a vital step to confirm the integrity of joints, penetrations, and the overall water-tightness of the assembly.
Partnering with Top US Manufacturers
Beyond specific product lines, working closely with the best manufacturers in the US ensures access to high-quality materials, comprehensive technical support, and the latest advancements in waterproofing technology. These manufacturers often provide detailed installation guides, training resources, and customer service to assist contractors and homeowners. By choosing products from leading companies and following their recommended installation and testing procedures, you build confidence in the durability and performance of your bathroom waterproofing.
What Are Frequently Asked Questions About Flood Testing in Bathroom Waterproofing?
Is a Flood Test Always Required by Building Codes?
In many jurisdictions, local plumbing codes reference national standards requiring flood tests for showers. Exceptions may apply for prefabricated pans with certified systems, but verification via code review or inspector guidance is essential.
How Long Should a Flood Test Last for Reliable Results?
Reliable flood tests extend a minimum of 24 hours, with 48–72 hours recommended for thorough evaluation of complex membrane systems or large wet areas.
What Happens If You Skip the Flood Test?
Skipping the flood test voids many manufacturer warranties, risks undetected leaks, accelerates mold growth, and often leads to costly teardown and repair after tile installation.
Can Different Waterproofing Membrane Types Affect Flood Testing Procedures?
Liquid-applied membranes require full cure before testing, whereas sheet membranes may allow testing within hours of adhesion. Always follow manufacturer-specific cure times and seam-sealing requirements to ensure accurate results.
Flood testing stands as a cornerstone of reliable bathroom waterproofing, delivering decisive evidence of membrane performance, safeguarding structural health, and maximizing property value. By understanding the procedures, codes, and troubleshooting techniques, you can confidently verify leak-free installation and enjoy lasting peace of mind. My extensive experience in bathroom remodeling ensures that every waterproofing project is executed with the highest standards of quality and effectiveness.
A meticulous flood test uncovers hidden defects before they compromise your bathroom, while compliance with ANSI, ASTM, and TCNA standards ensures professional quality. Incorporating complementary inspections and knowing when to engage specialists further elevates your waterproofing strategy. Embrace flood testing as your definitive step toward durable, code-compliant bathroom remodeling.
